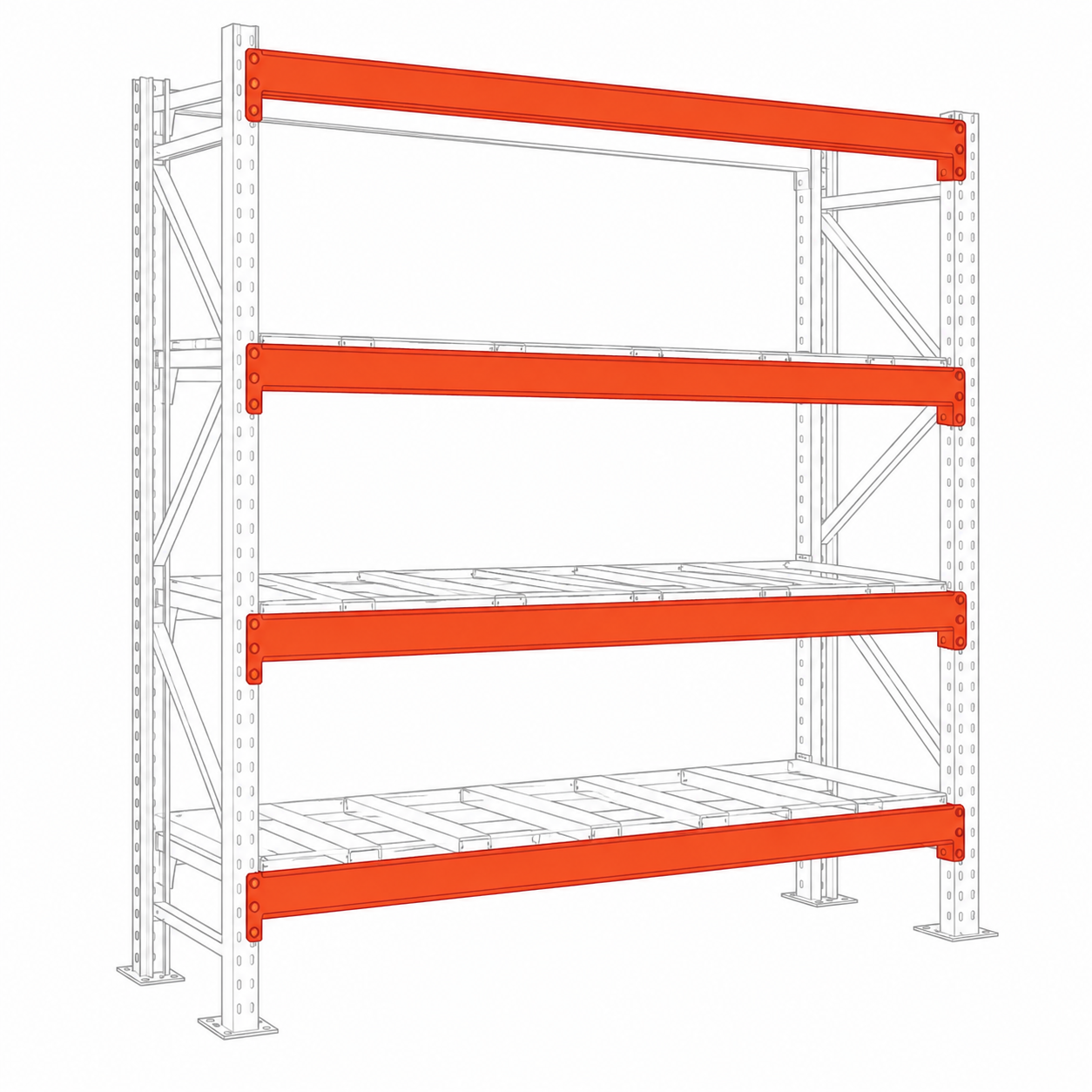

Warehouse Racking Beams
The Baobab Metal Systems Warehouse Racking Beams are engineered to deliver exceptional strength, safety, and performance for selective pallet racking systems. Manufactured from high-strength roll-formed steel, our boxed beam design provides outstanding rigidity and load-bearing capacity, making it ideal for demanding warehouse, logistics, and industrial storage applications.
Available in 76mm and 96mm boxed beam profiles, with a range of standard beam lengths, our racking beams are designed to maximise storage efficiency while maintaining excellent structural integrity.
The precision-engineered beam connectors ensure secure engagement with Baobab Warehouse Racking End Frames, allowing for quick installation and reliable long-term performance.
Whether you're storing light pallets or heavy industrial goods, Baobab Warehouse Racking Beams provide a safe, durable, and cost-effective storage solution.
Available Beam Sizes
- 76mm Boxed Beam
- 96mm Boxed Beam
Available Beam Lengths
- 1829mm
- 2134mm
- 2438mm
- 2743mm
- 3048mm
Safe Beam Load Capacities (Uniformly Distributed Load)
| Beam Size | Beam Length | Capacity per Beam Pair |
|---|---|---|
| 76mm Boxed | 1829mm | 2,325kg |
| 76mm Boxed | 2134mm | 1,990kg |
| 76mm Boxed | 2438mm | 1,645kg |
| 76mm Boxed | 2743mm | 1,325kg |
| 76mm Boxed | 3048mm | 1,090kg |
| 96mm Boxed | 1829mm | 3,065kg |
| 96mm Boxed | 2134mm | 2,627kg |
| 96mm Boxed | 2438mm | 2,300kg |
| 96mm Boxed | 2743mm | 2,044kg |
| 96mm Boxed | 3048mm | 1,745kg |
Note: Load capacities are based on evenly distributed loads with correctly installed racking systems. Beam capacities may vary depending on rack configuration and installation.
Standard Finish
- Orange Powder Coated
Features & Benefits
- High-strength roll-formed steel boxed beam construction
- Available in 76mm and 96mm beam profiles
- High load capacities for demanding warehouse applications
- Precision-engineered beam connectors for secure engagement
- Quick boltless installation
- Excellent resistance to bending and deflection
- Bright orange powder-coated finish for increased warehouse visibility
- Compatible with Baobab Warehouse Racking End Frames
- Modular design allows easy expansion and reconfiguration
- Manufactured in South Africa
Typical Applications
- Warehouses
- Distribution Centres
- Manufacturing Facilities
- Logistics Hubs
- Cold Storage
- Wholesale Storage
- Retail Distribution Centres
- Industrial Storage
- Third-Party Logistics (3PL)
- High-Bay Warehouses
Data Sheet
| Specification | Details |
|---|---|
| Product | Warehouse Racking Beam |
| Beam Sizes | 76mm Boxed & 96mm Boxed |
| Beam Lengths | 1829mm, 2134mm, 2438mm, 2743mm, 3048mm |
| Standard Finish | Orange Powder Coated |
| Material | High-Strength Roll-Formed Steel |
| Connection | Boltless Beam Connector |
| Application | Selective Pallet Racking Systems |
Why Choose Baobab Warehouse Racking Beams?
Baobab Metal Systems Warehouse Racking Beams are designed to maximise storage capacity while maintaining the highest standards of strength and safety. Their boxed beam profile delivers superior structural performance, making them suitable for a wide range of pallet sizes and load requirements. Combined with Baobab Warehouse Racking End Frames, they create a modular, scalable storage solution that can adapt as your business grows.
Standard manufacturing ETA: Ex stock - 21 days
